Wave Series
- Simultaneous dual-band imaging in the Short Wave InfraRed (SWIR) light spectrum.
- Wavelength band: 900 nm to 1700 nm.
- Active pixels: 2 x 1024 pixels.
- Line rate: 39 kHz (39,230 line/second).
- Cell size: 25.0 μm x 25.0 μm.
- Simultaneous dual-band imaging in the Short Wave InfraRed (SWIR) light spectrum.
- Wavelength band: 900 nm to 1700 nm.
- Active pixels: 2 x 1024 pixels.
- Line rate: 39 kHz (39,230 line/second).
- Cell size: 25.0 μm x 25.0 μm.

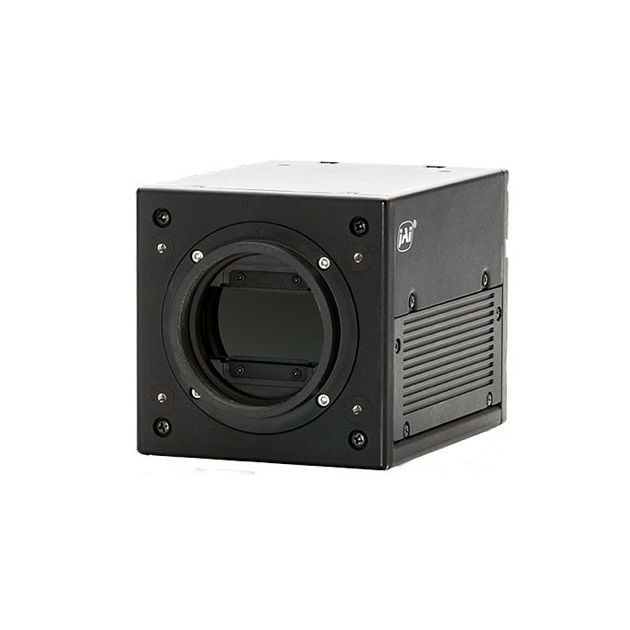

Wave Series: 2-sensor SWIR line scan camera
The Wave Series camera is a 2-sensor prism line scan camera capable of sensing Short Wave InfraRed (SWIR) light.
The camera is based on Indium/Gallium /Arsenide (InGaAs) sensor technology and combined with JAI’s prism line scan technology, making it capable of delivering dual-band imaging in the SWIR light spectrum (900 – 1700 nm).
Multi-sensor camera technology is a JAI core competence and over the years JAI has delivered cameras covering RGB and NIR into various applications.
The Wave Series camera brings 2-sensor imaging to the SWIR light spectrum providing extra “hidden” imaging data. This capability enhances current machine vision systems with imaging beyond what is possible when imaging the visible and/or the near infrared light spectrum.
The Wave Series opens up a range of new applications in automated visual inspection.
| 型號 | 相機類別 | 波長 | 規格 (百萬像素) | 分辨率 (横x縱) | Line Rate | Cell size (μm) |
Data output (Bit) |
Interface |
| ICDA-WA-1000D-CL | 線型 | SWIR | N/A | 2-InGaAs x 1024 | 39 kHz | 25 x 25 | 8/10/12 | Camera Link (CL) |
